Code P06DD Low Oil Pressure or No Oil

Vehicles Affected: Cadillac Chevrolet GMC

2016-2019 2015–2019 Cadillac CTS-V 6.2L LT4 Escalade de Cadillac 6.2L L86\s2016-2019 Corvette Camaro 6.2L LT1 LT4\s2014-2019 Corvette by Chevrolet 6.2L LT1 LT4 2014-2018 a Chevy Silverado 6.3 L86, 5.3 L83, and 4.3 L LV3

2019 Silverado Chevrolet LD 2015-2019, 4.3L LV3, 5.3L L83, and 6.2L L86 Volkswagen Suburban 5.3L L83\s2015-2019 Cadillac Tahoe 5.3L L83\s2014-2018 Chevy Sierra 2019 4.3L LV3, 5.3L L83, and 6.2L L86 Sierra GMC Limited 4.3L LV3, 5.3L L83, and 6.2L L86 GMC Yukon, 2015–2019 GMC Yukon XL, 5.3L L83, 6.2L L86, 2015-2019 5.3L L83, 6.2L L86

Condition: The oil control valve may be jammed open, causing high oil pressures (95 psi), and the oil pump face may be harmed. The vehicle setting code is P06DD.

Cause: The tensioner spring in the timing chain guide could not properly seat into the pivot end of the guide.

The timing chain tensioner guide needs to be replaced. Replace the oil pump if the face is worn through or damaged. Check the bearings for wear and damage from oil pump debris.

Procedure for Service: The tensioner spring in the timing chain guide could be "short" and not entirely seat into the pivot end of the guide.

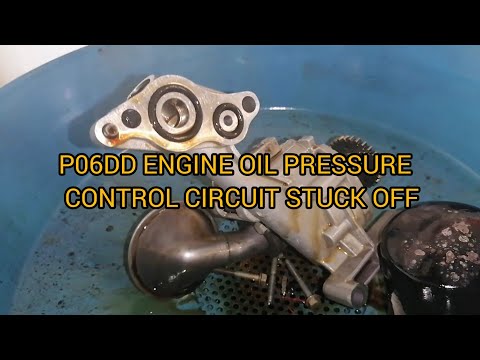

The reaction of the oil pump is unaffected by cycling the oil pump control valve.

1) The pivot is not reached by the short spring

Additionally, a damaged tensioner shoe could permit the spring to rip a hole in the oil pump.
